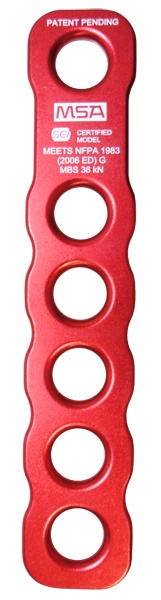

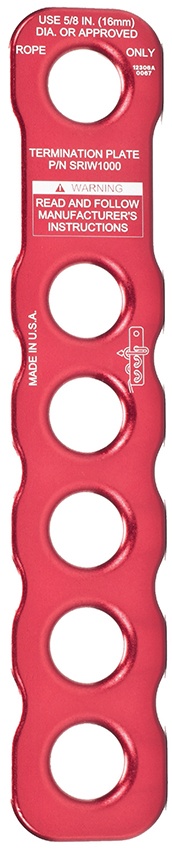

The MSA 5/8 Inch Termination Plate is a high-tensile, aluminum alloy termination plate used to terminate 5/8 inch (16 mm) diameter rope.

Specifications:

• Material: High-tensile aluminum alloy
• Corrosion-resistant finish
• Strength:
• 2,900 lbf (13 kN) without deformation
• 8,000 lbf (36 kN) without breaking
• Size: 10 inch X 2 inch X 3/8 inch (25 cm X 5 cm X 1 cm)
• Weight: 0.5 lb (.23 kg)
• Capacity (fall arrest): One person and gear with a total weight of 310 lb (140 kg)
• Capacity (rescue): Up to two people with a combined total weight of 600 lb (272 kg)
