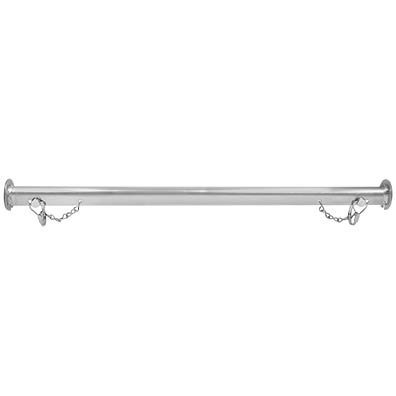

Lemco Shotgun Arm (24")

Lemco's SG-24 shotgun arm / cable block pusher can be used between the lasher and the cable guide chute when lashing aerial cable. A SG-24 mounted in front of a lasher serves as a spacer for the cable guide (and multi-cable positioners, if required) during drive-off installations. In back-pull installations the arm pushes cable blocks located mid-span to the next pole for removal as the cable is being lashed.

Features
• Zinc Plated
• Fabricated of a steel tube and bearing flanges
• Lock-pins retain the pusher to the strand

Specifications
• Strand up to: 9⁄16” in diameter
• Length: 24 in
• Weight: 2 lbs
