Manufactured of high quality lightweight 6061-T6 angle aluminum with an all-bolted construction using 18-8 self-locking stainless steel hardware with nylon inserts. A handsome Z-style design is used. 1/3 the weight of steel towers!

Safety
With the Hazer System, the need to climb is eliminated. The Hazer brings you antennas speedily down to ground level with ease in an upright position within arms reach. What other product does that?

Strength
Strong diagonal construction. Aluminum towers provide up to 20 square feet of useable wind load ability!

Durability
All of our towers include anodized satin finishing which eliminates corrosion, rust, and maintains a bright 'like-new' appearance. Enjoy years of maintenance-free use!

Convenience
The Hazer allows not only easy installation of antennas, but maintenance of them as well. One person can easily bring an entire antenna system to the ground safely.

Easy Installation
All packages include a hinge base for easy installation. Just connect the lightweight assembled sections to the footing assembly that is also included in the package, and hinge the tower easily into place.

Besides the obvious quality of Martin Aluminum Towers, tower users appreciate the Hazer Tram System.

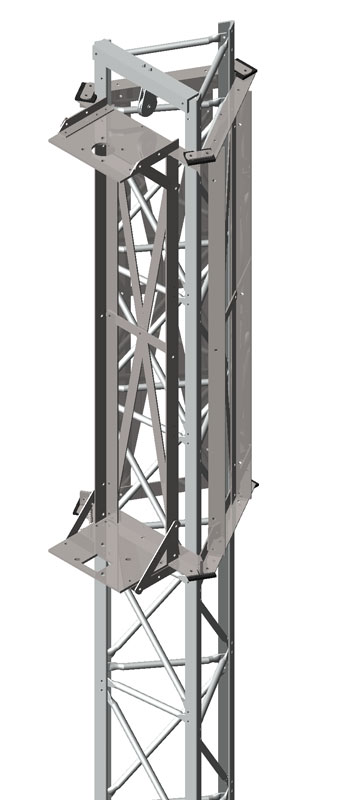

Our 30 to 50 foot towers use the H-5 & H-6, a unique three sided elevator cage that rides around the outside edge of your tower. A winch at the ground and a pulley at the top of the tower move the unit up and down the tower. A safety latch operates past each of the horizontal braces on the tower, much like a ladder lock. This guarantees safety even if the cable were to ever break.

All tower packages include all necessary hardware and accessories for a complete tower installation. Complete packages are shipping via motor freight, and will arrive in and easy-unload crate. A quality tower is your best investment. Let us be "Your Solution to Support!"

Enlarge

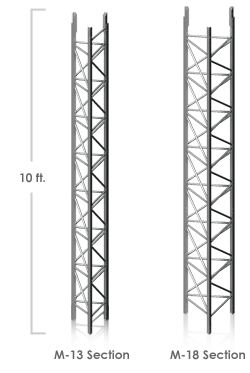

Martin Aluminum Tower Specifications:
	M-13 Towers	M-18 Towers
Weight	33 lbs.	35 lbs.
Length	10' (7'6" & 8'9" are also available)
Tower Width	12-3/4" equal triangle	17-3/4" equal triangle
Material	6061-T6 anodized aluminum with satin finish
Hardware	18-8 stainless steel, 1/4-20 nylon insert lock nuts
Tower Brace Diameter	1/2" OD x .062 wall	5/8" OD x .062 wall
Cubic Yds. Concrete	1-1/4 yards	2-1/2 yards
Wind Load @ 50'	12 sq. ft. @ 87 mph	16 sq ft. @ 87 mph
Free-standing Height	30' with 2 sq. ft. load	38' with 2 sq. ft. load

Wind Load Capacity Chart:
mph lbs per sq. ft.	80 mph 25 psf	87 mph 40 psf
M-1330A	16.8 sq. ft.	14 sq. ft
M-1340A	15.6 sq. ft	13 sq. ft
M-1350A	14.4 sq. ft	12 sq. ft
M-1840A	20.4 sq. ft.	17 sq. ft.
M-1850A	19.2 sq. ft.	16 sq. ft
